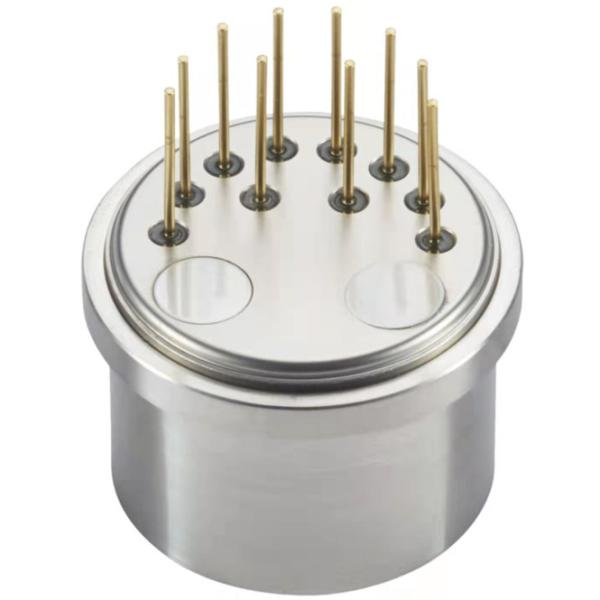

IMU accelerometer single axis interial accelerometer for flight

Name: IMU accelerometer single axis interial accelerometer for flight
Brand: Firepower
Price: 1190 USD

Model Number : JB1-02

Place of Origin : China

MOQ : 1

Price : 1190

Payment Terms : T/T

Supply Ability : 500/month

Delivery Time : 1 week for sample order

Packaging Details : sponge/box

product name : sensitive accelerometer

shell : stainless steel

Range : 50g

Bias K0/K1 : ≤±3mg1

Scale factor K1 : 1.05~1.30 Ma/g

Random vibration : 6g(20-2000Hz)

Brand Name : Firepower

Contact Now

IMU accelerometer single axis interial accelerometer for flight

Size:

IMU accelerometer single axis interial accelerometer for flight

Performance Characteristics

No.	Parameters	JB1-01
1	Range	±50g
2	Threshold	5μg
3	Bias K₀/K₁	≤±3mg1
4	Scale factor K₁	1.05~1.30 Ma/g
5	Second order nonlinearity coefficient K₂	≤±10μg /g2
6	0g 4 hours short-term stability	≤10 μg
7	1g 4 hours short-term stability	≤10 ppm
8	Bias comprehensive repeatability σK₀ (1σ,1 month)	≤10 μg
9	Scale factor comprehensive repeatability σK₁/K₁ (1σ,1 month)	≤15ppm
10	Nonlinearity coefficient comprehensive repeatability K₂/K₁(1σ, 1 month)	≤±10 μg /g2
11	Bias thermal coefficient (full temp. mean)	≤±10 μg /℃
12	Scale factor thermal coefficient (full temp. mean)	≤±10 ppm /℃
13	Noise (sampling resistance 840Ω)	≤5mv
14	Natural frequency	400~800 Hz
15	Bandwidth	800~2500 Hz
16	Random vibration	6g(20-2000Hz)
17	Impact	100g,5ms,1/2sin
18	Working temp.	-55~+85℃
19	Store temp.	-60~+120℃
20	Power supply	±12~±15V
21	Consume current	≤±20mA
22	Thermal sensor	Customizable
23	Size	Ф25.4X30mm
24	Weight	≤80g

Customer Service

Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
Your inquiry related to our products or price will be replied in 24hrs.
Keep informing our customer production process and help arrange quality checking in the factory if necessary.
One-year warranty to our product and negotiable for some cases.
For installation or testing, we could provide on-line instruction and training the whole life.

Characters

● Low lag

● High resolution

● High stability

● High accuracy

● Low power

● Excellent overload capacity

● Small volume

● Low cost

● Broad measurement range

Applications

● Drilling and Inclination Measurement

● Aeronautics and Astronautics

● Instruments and Equipment
